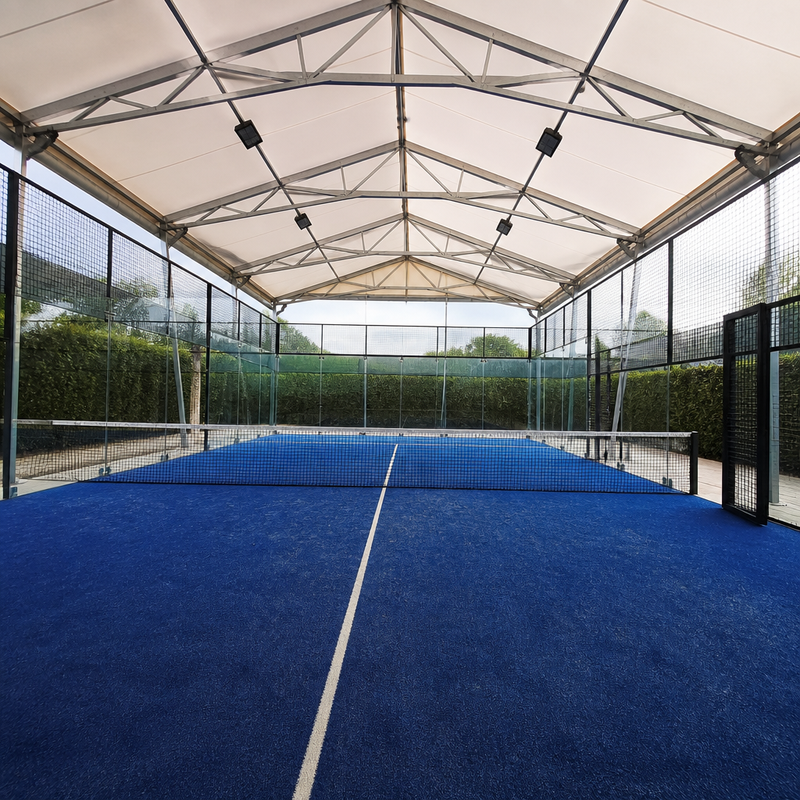

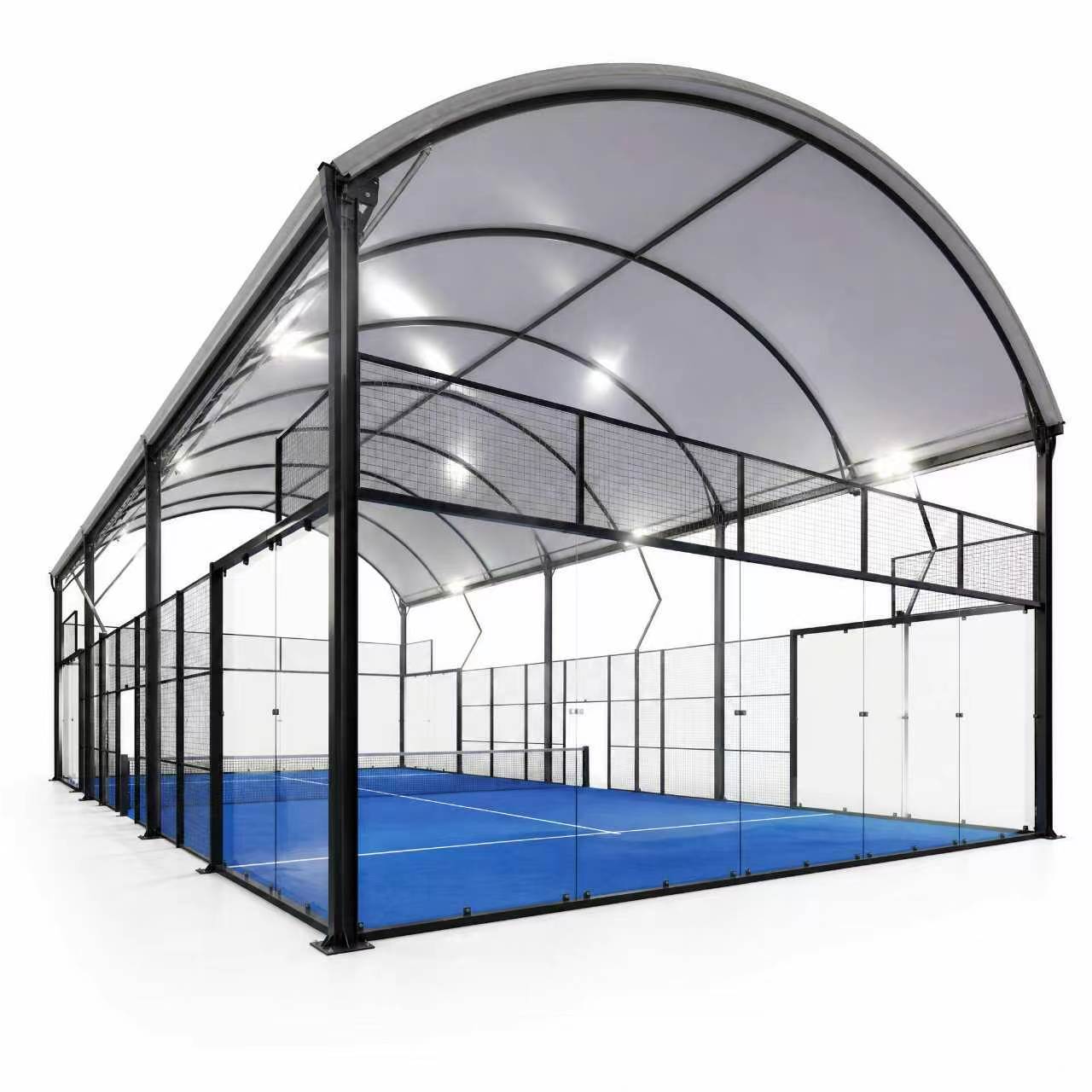

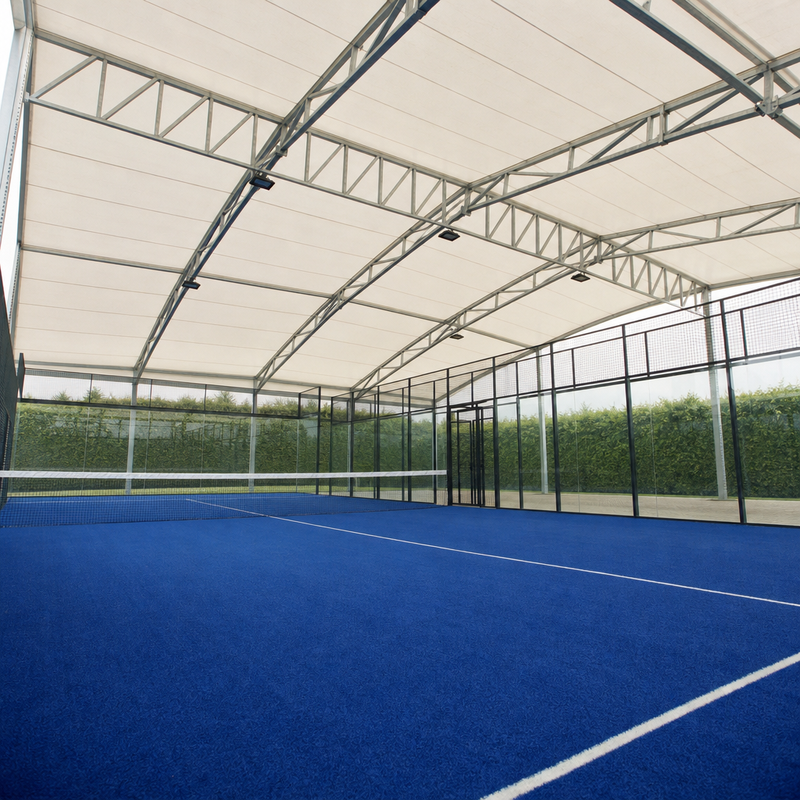

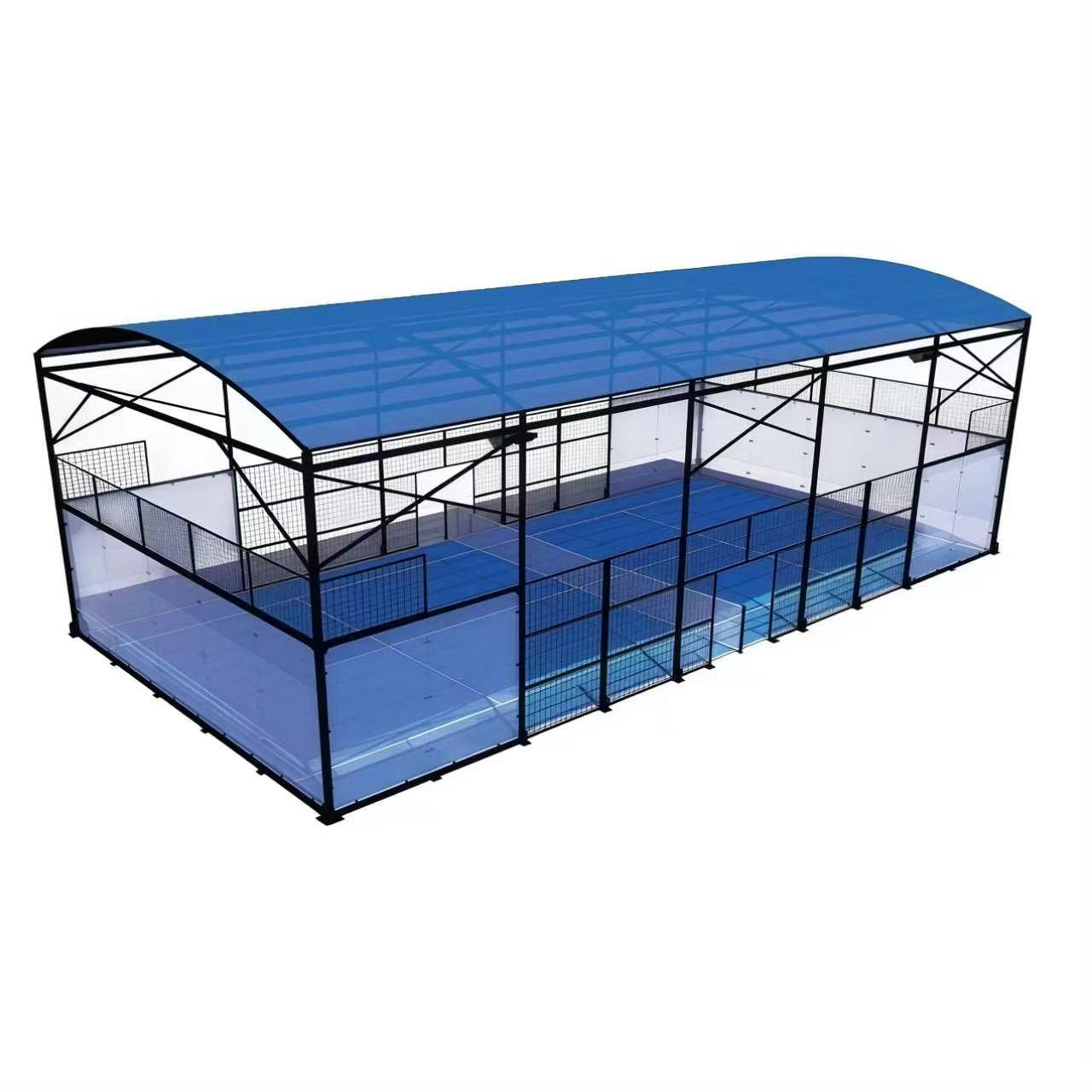

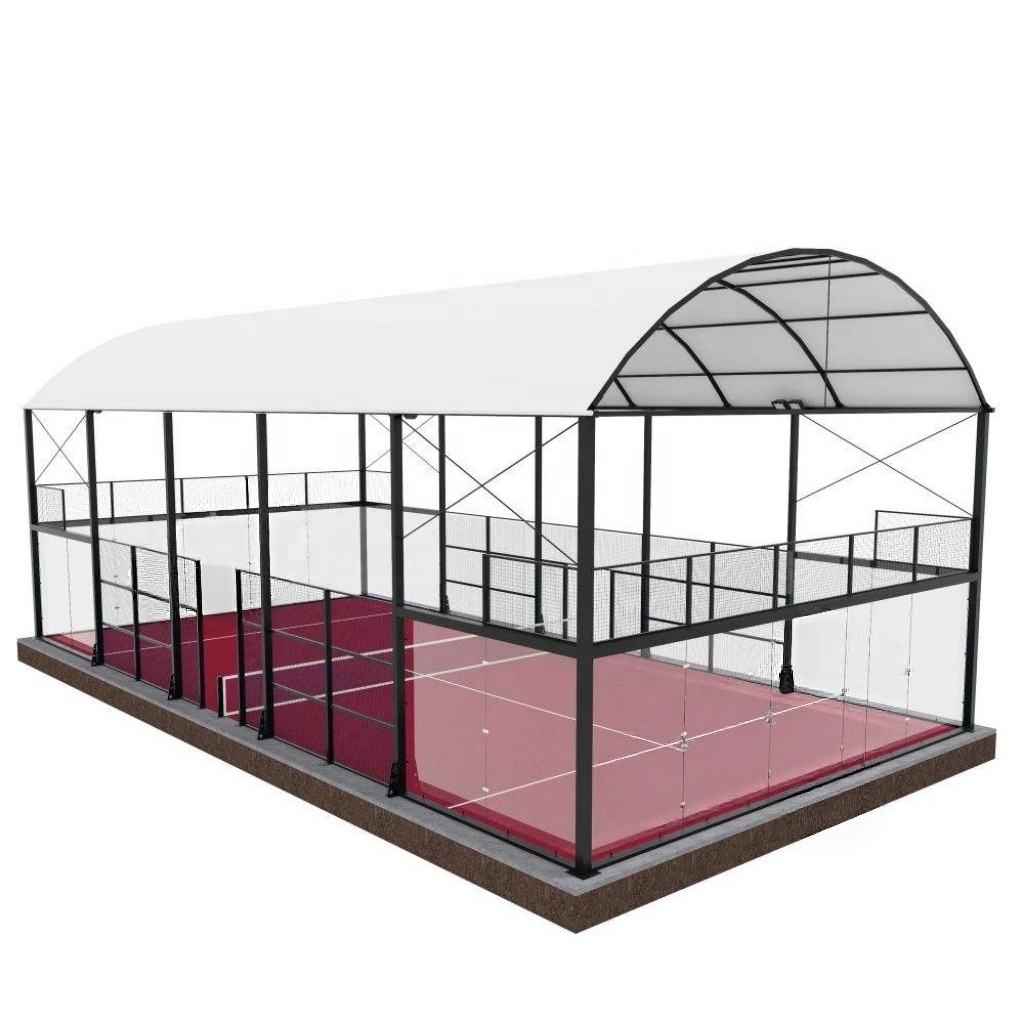

Covered Panoramic Padel Court, 20×10m With Independent Steel Canopy
- Product details
-
Place of Origin：Cangzhou, Hebei, ChinaBrand Name：TONG YANGModel Number：Panoramic Padel Tennis Court
Applications:
1. Resorts & Hotels
Ideal for high-end resorts, holiday hotels and boutique hotels. The all-weather padel court creates a fashionable sports & social space for guests, improving resort competitiveness and guest experience.
2. Commercial Sports Clubs & Fitness Centers
Suitable for commercial padel clubs. Players can book and play in all seasons without weather interruption, maximizing venue operating hours and revenue.
3. Sports Centers & Tournament Venues
Can be built as official competition and training venues. The independent canopy structure meets wind and snow load standards, supporting regular matches, training and live broadcast events.
4. Real Estate & High-end Communities
Matched with supporting facilities of luxury residential communities. It adds premium sporting amenities for property owners and elevates property value.
5. Schools & Universities
Used for physical education classes, student training and campus recreational activities. The canopy protects students from strong sunlight and light rain, ensuring stable teaching schedules.
6. Rooftop & Commercial Complex Projects
Available for rooftop construction of shopping malls and commercial complexes. The independent steel canopy solution avoids weather limitations and becomes a landmark sports attraction.
Advantages：
1. All-weather availability
The independent steel canopy shields the court from rain, snow, hail and intense sunlight. Matches year-round operation, greatly reduces downtime caused by bad weather and maximizes venue revenue.
2. Separate load-bearing design
Wind load and snow load are fully borne by the independent steel truss structure. The padel court glass and enclosure frame will not bear roof loads, improving overall safety and extending service life.
3. Flexible roofing options
You can choose polycarbonate sheets or double-layer PVDF coated membrane. Both materials are UV-resistant and flame-retardant, adaptable to coastal, high-humidity and strong sunlight regions.
4. Complete panoramic visual effect
Retains the full panoramic glass enclosure feature of standard padel courts. Players and spectators still enjoy open sightlines while getting weather protection.
5. Customized lighting & drainage system
Integrated perimeter gutter and downpipe drainage system to drain rainwater efficiently. LED sports lighting can be installed on the canopy structure to meet recreational, training and tournament illuminance requirements.
FAQ：
Q1: What is the biggest difference between a covered padel court and an ordinary outdoor padel court?
A1: The covered padel court is equipped with an independent steel canopy. The roof bears wind and snow loads separately without transferring load to the padel glass enclosure. It realizes all-weather use, free from rain, snow and strong sunlight, greatly extending the daily and annual operating time of the venue.
Q2: Can the canopy adapt to heavy snow and strong wind areas?
A2: Yes. Our steel canopy is designed according to EN 1991 snow load and wind load standards. We will adjust the steel specification and structural design based on local geological and meteorological data of your project site.
Q3: What roof covering materials are available for selection?
A3: Two mainstream options: polycarbonate solid sheets and double-layer PVDF coated tensile membrane. Both materials are UV-resistant and B1 grade flame retardant. Polycarbonate has higher impact resistance; PVDF membrane is lightweight with good light transmission.
Q4: Does the canopy affect the panoramic view of the padel court?
A4: No. The enclosure still adopts full panoramic glass design. The canopy only covers the top area and will not block sightlines for players or spectators.
Q5: What is the minimum clear height under the canopy?
A5: The minimum clear height is 6m; 8m is recommended for new construction. Height is measured from the court floor to the lowest obstacle including purlins, supports and light fixtures.
Q6: Is the court prefabricated? How about the installation?
A6: Yes. Both the canopy and padel court are factory prefabricated modular components. On-site installation is mainly bolted assembly without large-scale on-site welding. We provide construction drawings and technical guidance.
